HNRS1009 Truck Container Forklift 10 Ton Reach Stacker For Container Handling

SOCMA specializes in the design and manufacture of high-performance port machinery. SOCMA products, known for their robust construction and exceptional lifting capacities, are perfectly suited for challenging industrial tasks. Available in both diesel and electric options, SOCMA Reach Stackers cater to a wide range of heavy-duty applications in ports, logistics centres, and construction sites, ensuring reliability and efficiency for our global clientele.

Product Information

Heavy-Duty Lifting Capacity: The HNRS1009 Reach Stacker boasts a formidable lifting capacity of 45 tons, making it ideal for heavy container operations. It can efficiently handle, transport, and stack large containers, ensuring high throughput in busy cargo handling environments.

Powerful Diesel Engine: Powered by a robust diesel engine, this reach stacker provides high torque and sustained power output necessary for heavy lifting and continuous operation. The diesel engine is chosen for its reliability, long service life, and ease of maintenance, suitable for the rigorous demands of heavy industrial applications.

Advanced Maneuverability: Despite its substantial lifting capabilities, the HNRS1009 is designed for exceptional maneuverability. It features an advanced steering system and precise control mechanisms, allowing for smooth navigation and accurate placement of containers in tight and congested spaces.

Durable Build Quality: Constructed with high-strength steel and designed to withstand harsh working conditions, this reach stacker is built for durability and resistance to wear and tear. Its rugged design ensures it can operate efficiently in diverse weather conditions and challenging environments.

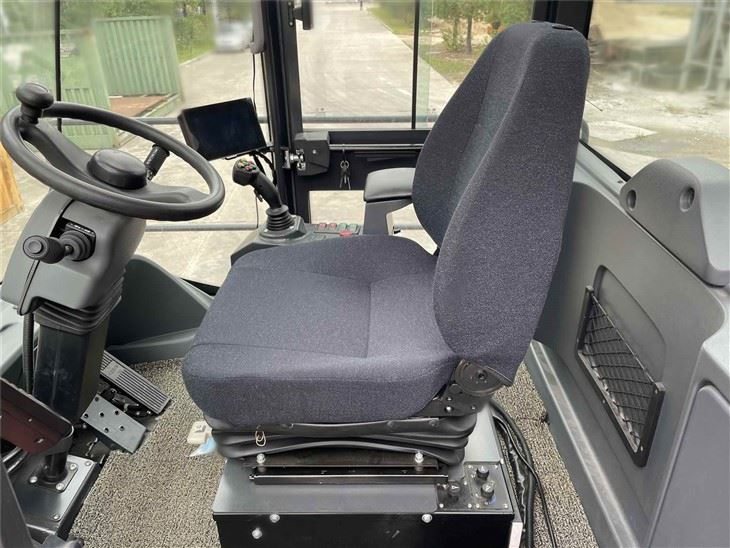

Operator Comfort and Safety Features: The operator’s cabin is designed with comfort and safety in mind, providing excellent visibility, ergonomic controls, and a comfortable seating position. Safety features include load stability control, automatic braking systems, and emergency stop functions, all of which contribute to a safe operating environment for the operator and surrounding personnel.

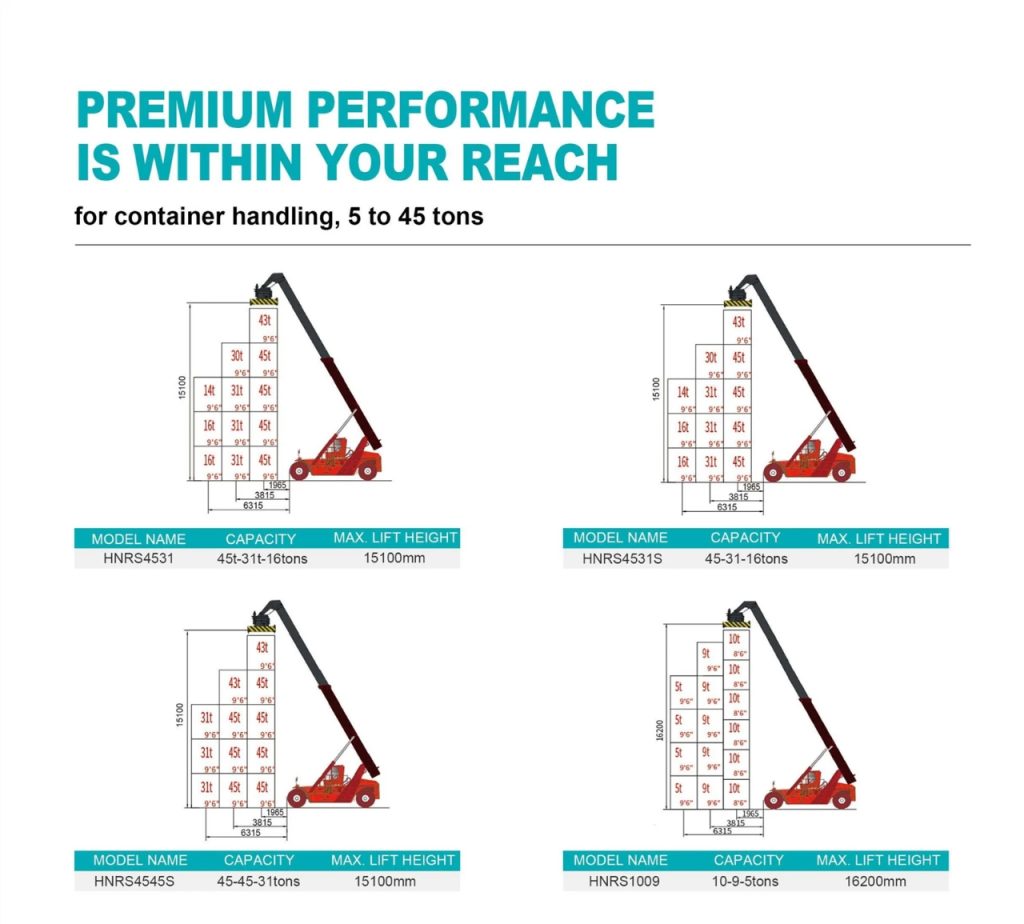

Basic Parameter HNRS4531 HNRS4545S HNRS1009
EngineVOLVO / CUMMINS / SCANIAVOLVO / CUMMINSCUMMINS
TransmissionDANADANADANA
Driver AxleATI/KESSLERATI/KESSLERKESSLER
SpreaderSOCMA J450SOCMA J450ZDJ100
Spreader Weight7.8t7.8t4T
Max Lift Capacity45t/31t/16t45t/45t/31t10T/9T/5T
Max Spreader15100mm15100mm16200mm
Boom Angle0~60deg0~56deg0~65deg
Max Lifting Speed420/250(mm/s)400/220(mm/s)450/400(mm/s)
Drive Speed25/21(km/h)24/20(km/h)28/25(km/h)
Gradeability39/32%33/21%33/27%
Hydraulic Pressure262bar262bar260bar
Overall Dead Weight72t79t39t
Stacking Length5 (9'6")5 (9'6")6 (9'6")
Max Length11300mm12685mm11031mm
Wheel Base6000mm7250mm~9750mm5000mm
Max Height4625mm4725mm4041mm
Max Width6053-12185mm6053-12185mm4049mm
Turning Radius Inner8000mm9700mm6753mm
Aisle Width With 20ft11797mm13282mm8072mm
Aisle Width With 40ft13965mm14261mm12684mm
Fuel Consumption18L~20L/h19L~21L/h12L~14L/h
Tire Type18-25X40P18-33X40PR14-24X28PR
