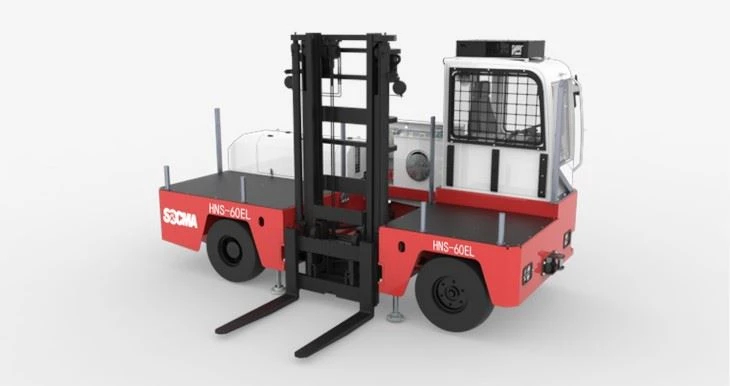

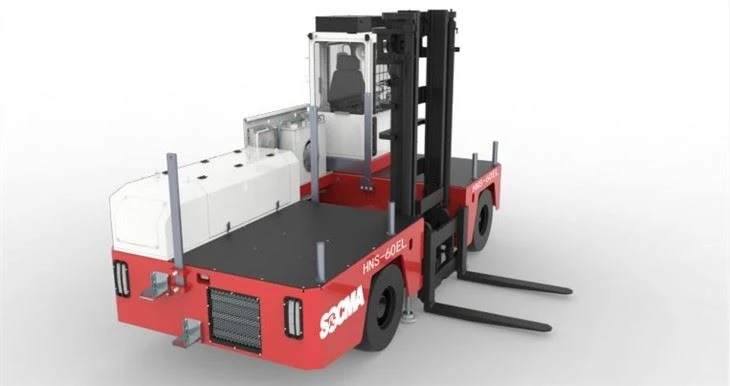

6 Ton Electric Side Load Forklift HNS-60EL

Specifications

1、Double drive, double pump, strong power；

u The advanced dual motor unit can improve the climbing and driving performance of the whole vehicle to the greatest extent, with large torque and more powerful power;

u The new domestic maintenance free AC motor has high transmission efficiency and low maintenance cost;

u The KEESKER axle box integrated drive axle imported from Germany has compact structure, guaranteed quality, higher transmission efficiency and stable performance;

Double pump control system, when steering, one of the gear pump motor work; When the mast is lifting, the double pump motor works, and the hydraulic oil flows into the multi way valve. The double pump system can maximize the lifting performance of the mast and reduce the energy consumption of the battery.

2、Driving area design

uIt adopts Danfoss electronic control aviation handle imported from Denmark, which saves space and is easy to operate;

uThe large angle adjustable direction machine is adopted, and the adjustable angle is 0 ° ～21 °；

uThe ergonomic large back seat is adopted, with front and rear adjustable, up and down adjustable to meet the operation needs of most people;

uThe humanized design of cooling and heating air conditioning and reversing image improves the cab experience and safety.

3、Lithium battery, energy saving and environmental friendly

u The original lithium battery standard package of Yiwei is adopted, with high energy density, convenient maintenance and replacement, and higher reliability;

u The battery thermal management system is designed to make the battery life longer;

u The battery can be fully charged at 0.5c (2 hours) as soon as possible to meet the daily normal use.

4、controller

u American brand controller (CURTES) is adopted with stable performance;

u The controller cooling device is designed to ensure the long-time performance of the controller;

5、Hydraulic system

u The German brand electronic control multi-channel valve (BARMAG) is adopted, which can realize stepless control; Multiple cylinders are combined to meet the simultaneous operation of multiple actuators; Improve the efficiency of the hydraulic system, reduce heating; The system has good stability and high integration;

u Full hydraulic braking, high braking efficiency, safe and reliable system.

6、Equipped with remote positioning, monitoring, keep at home to know the situation of the vehicle, convenient maintenance;
