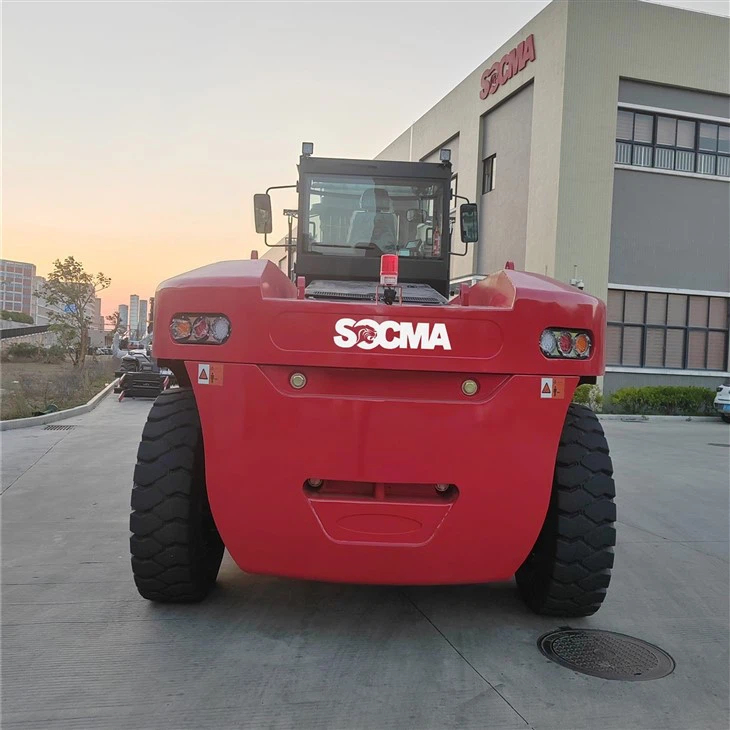

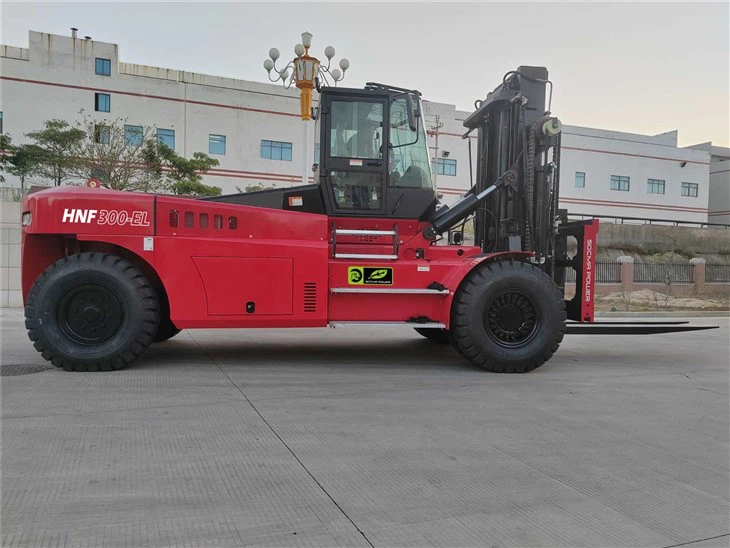

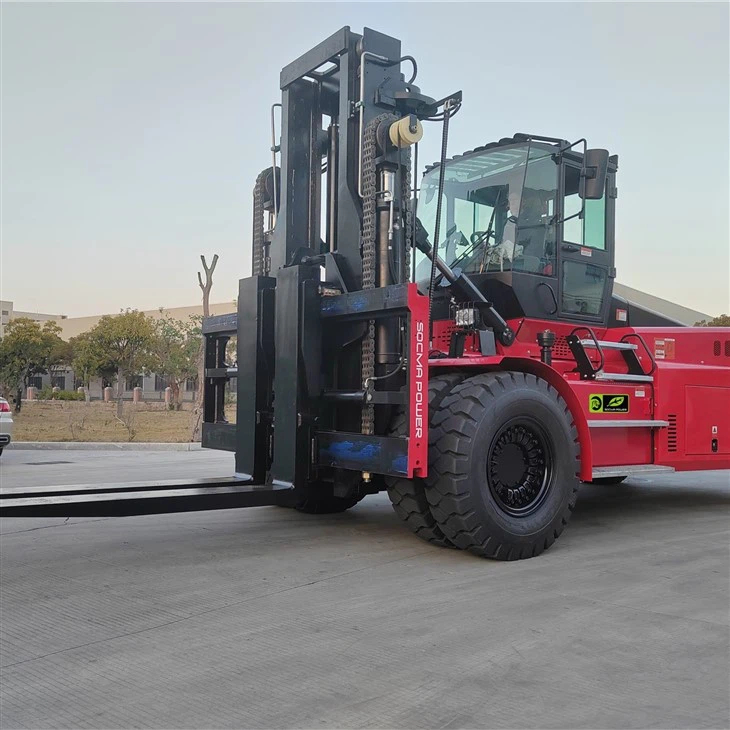

30t Electric Forklift

Innovation:

1. It not only simply replaces the diesel engine with an electric motor, but also completely optimizes the hydraulic system.

2. Independently develop variable speed and fixed displacement control system, global power matching, on-demand fuel supply, and reduction of throttling and overflow losses.

3. Coordinated control of multiple motors, reasonable matching of motor loads, optimized energy management, and efficient operation; time-sharing work, automatic idle shutdown, reducing idling energy consumption of motors and pumps.

4.579.6V high-voltage solution reduces current; high-efficiency permanent magnet synchronous motor, intelligent door drive variable speed control, extremely low heat generation, and saves 20% electricity than asynchronous motors.

5. Regenerate power for various negative loads and improve the energy utilization of the entire machine based on power lithium battery energy recovery.

main feature:

1.Economy:

lLow cost of use: The cost of electricity is about 20~30% of the fuel consumption of traditional construction machinery.

lLow maintenance cost: fewer wearing parts, low failure rate, and simple maintenance; there is no need for regular maintenance of the diesel engine, replacement of oil, three filters, etc., and the maintenance cost is reduced by more than 50% compared with traditional diesel engineering machinery.

2. The battery system is safe, highly efficient, and has a long life, and can be used normally for 8 years, solving the pain points that users are concerned about.

lUsing lithium iron phosphate battery, it has good thermal stability and solves the risk of spontaneous combustion or deflagration caused by thermal runaway. Its safety is substantially improved compared to ternary lithium battery.

lLithium iron phosphate batteries can be charged and discharged more than 2,800 times, and their service life is about 2.5 times that of ternary lithium batteries and 5 to 10 times that of lead-acid batteries.

lAdvanced battery management system (BMS) provides all-weather real-time safety monitoring of overcharge, over-discharge, over-current, insulation resistance and battery operating temperature to ensure the safety, efficiency and longevity of each battery pack.

3. Reliable high performance

lElectric vehicle-grade motors and controllers, complete vehicle component status monitoring, electrical system IP67 protection level, high-quality, mature hydraulic parts, flame-retardant material wires, reliable and durable, and adaptable to harsh working environments.

lIntelligent electronic fan and efficient liquid cooling system to prevent overheating protection and shutdown.

lThe battery has its own heating system and works normally in the environment of -30~+55℃ (-22~131℉).

lThe working device is fully electronically controlled and multi-mode switching, making it safer to transport precise equipment; the independent motor drive for walking and the electronic throttle system facilitate various compound action conditions.

4. Strong battery life

lIndependently research and develop the complete machine drive scheme and integrated management and control system, with high-efficiency interval operation, and the recovery of walking braking kinetic energy for regeneration to generate electricity, which significantly reduces power consumption and improves endurance under the same conditions.

l350 kWh large-capacity lithium battery, SOC charging takes 1.2 hours and works for 8 hours.

5. Comfortable and environmentally friendly

lZero emission, zero pollution: There is no exhaust gas emission during driving and working.

lLow noise: The noise emitted by the electric motor during operation is much smaller than that of the high-power diesel engine of engineering machinery.

lLow Vibration: The vibration generated by the electric motor is much lower than that of the diesel engine, significantly improving the driving experience.

Easy to operate: Intelligent, fully electronic control system reduces labor intensity.
