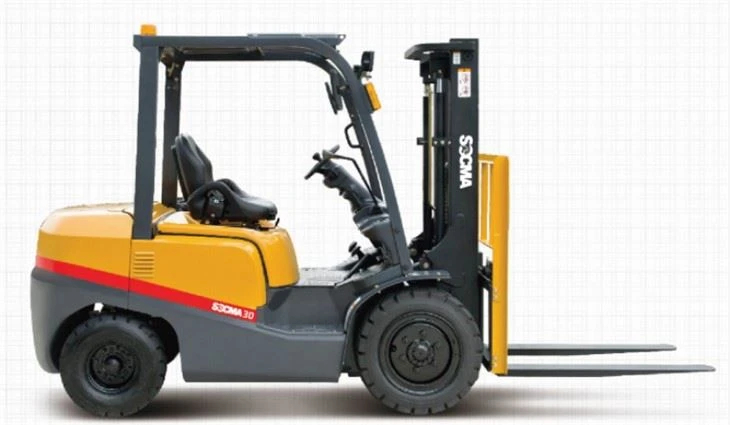

3 Ton Small Diesel Forklift Work In Container
500mm load center, 1220mm fork length
Xinchai Engine C490 Power
Hydraulic transmission
With hydraulic fork positioner
3000mm lifting height, two stage wide view mast
Pneumatic tires (4/2)
Product Introduction
1. LED working lights and warning lights make it safer and more efficient even in poor lighting conditions.
2. Equipped with electronic hydraulic transmission, operation is more comfortable and durable.
3. embedded LED instrument, with neutral display, if not placed in the neutral position, the engine cannot be started.
4. New designed overhead guard protective device prevent the sudden accidents. The excellent head protection design and plastic celling make it possible to work safely even in rainy day.
5. Step area is about 1.5 times of similar forklift, while the step height is lower, more convent to up and down the forklift.
6. Original ISUZU, MITSUBISHI, KOHLER or PSO engine, sharply reduce the concentration of black smoke and noise at the same time, also to achieve high power, low energy consumption.
7. Removable side cover is much more convenient to inspection and simple repairs.
8. On the basis of increasing the radiator, we use the aluminum for heat-sink which has enhanced significantly the cooling effect. Plus large double muffler has superior noise reduction effect.
9. Fully-enclosed instrument platform enlarge the working space.
Parameter-Standard Configuration
| Model: HNF-30T | ||
|---|---|---|
| Power Unit | Diesel | |
| Operator Type | Driver/Seat | |
| Transmission Box Type | Electronic hydraulic transmission | |
| Rated Capacity | kg | 3000 |
| Load Center | mm | 500 |
| Max. Lifting Height | mm | 3000 |
| Tire Type | Pneumatic Tyre | |
| Tire Number - Front | 2 | |
| Tire Number - Rear | 2 | |
| Tire Size - Front | 28×9-15-14PR | |
| Tire Size - Rear | 6.5-10-10PR | |
| Performance | ||
| Lifting Speed - Loaded | mm/s | 520 |
| Lifting Speed - Unloaded | mm/s | 570 |
| Lowering Speed - Loaded | mm/s | 450 |
| Lowering Speed - Unloaded | mm/s | 510 |
| Travelling Speed - Loaded | km/h | 17 |
| Travelling Speed - Unloaded | km/h | 18 |
| Max. Gradeability (Loaded) | % | 20 |
| Max. Drawbar Pull (Loaded) | kg | 18 |
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 |
| Free Lifting Height | mm | 80 |
| Turning Radius | mm | 2465 |
| Dimensions | ||
| Overall Length (with fork) | mm | 2610 |
| Overall Width | mm | 1240 |
| Overhead Guard Height | mm | 2120 |
| Fork Size (L×W×T) | mm | 1220×125×45 |
| Mast Height (Fork lowered) | mm | 2080 |
| Battery (Voltage/Capacity) | V/Ah | 12/80 |
| Truck Weight | kg | 4110 |
| Fuel Tank Capacity | L | 70 |
| Engine | ||
| Brand | Xinchai Engine | |
| Model | C490 | |
| Rated Power | kW/rpm | 40/2650 |
| Rated Torque | N·m/rpm | 162/1800-2000 |
| Number of Cylinders | 4 | |
| Displacement | 2.35 | |
