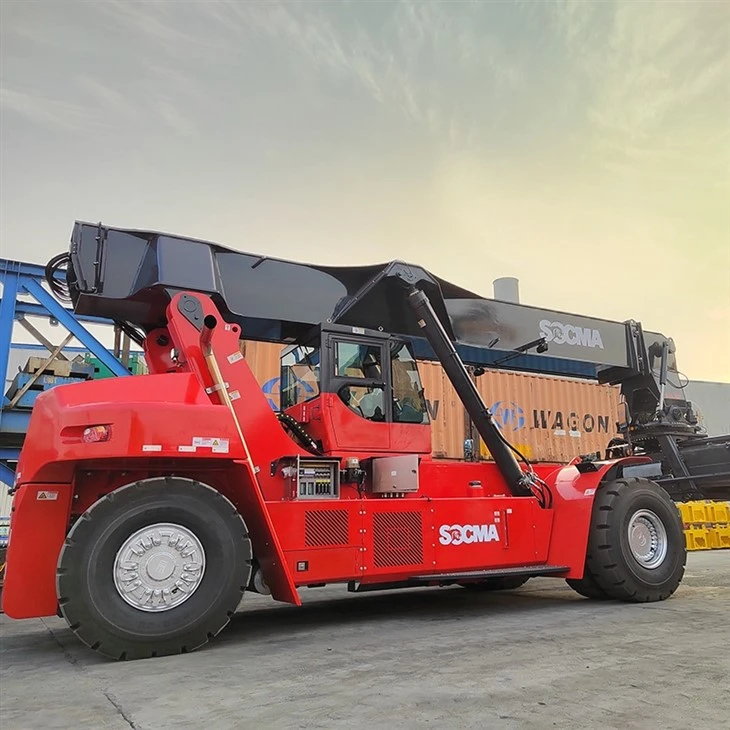

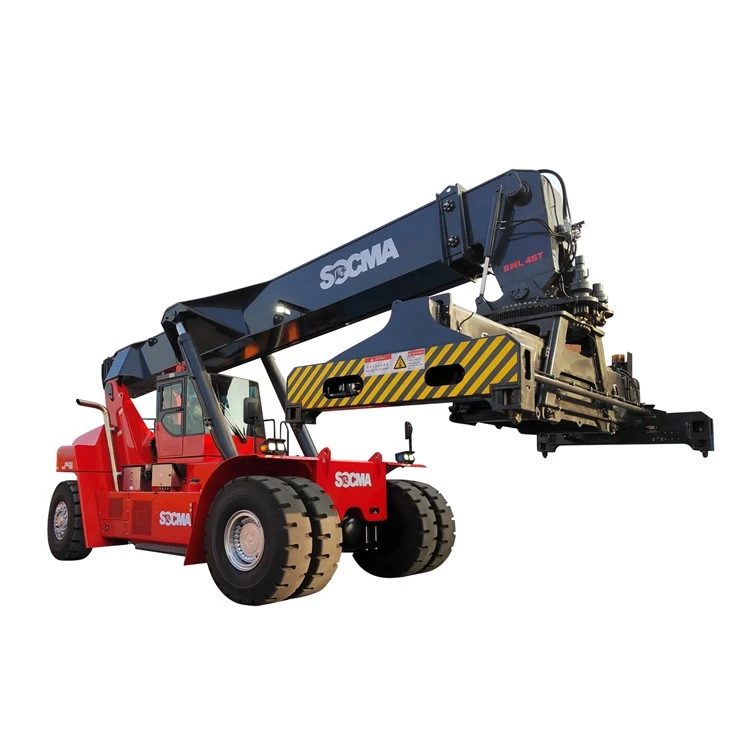

HNRS4531 45 Ton Container Reach Stacker Container Forklift
Product Information
SAFETY AND HIGH RELIABILITY：Finite Element And Dynamic Simulation Technology Dynamic anti-tip over protection Load sense hydraulic system Equipped with automatic fire extinguishing device High quality spreader steel.
Intelligent And Highly Protective：Advanced hydraulic load sensing tech-nology,Easy inspection and maintenance spreader,Adaptive technology of hydraulic back pressure for boom retraction.

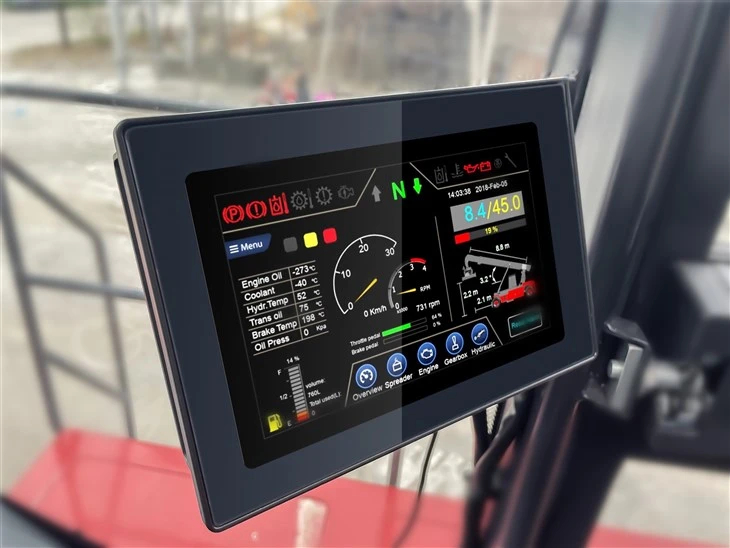

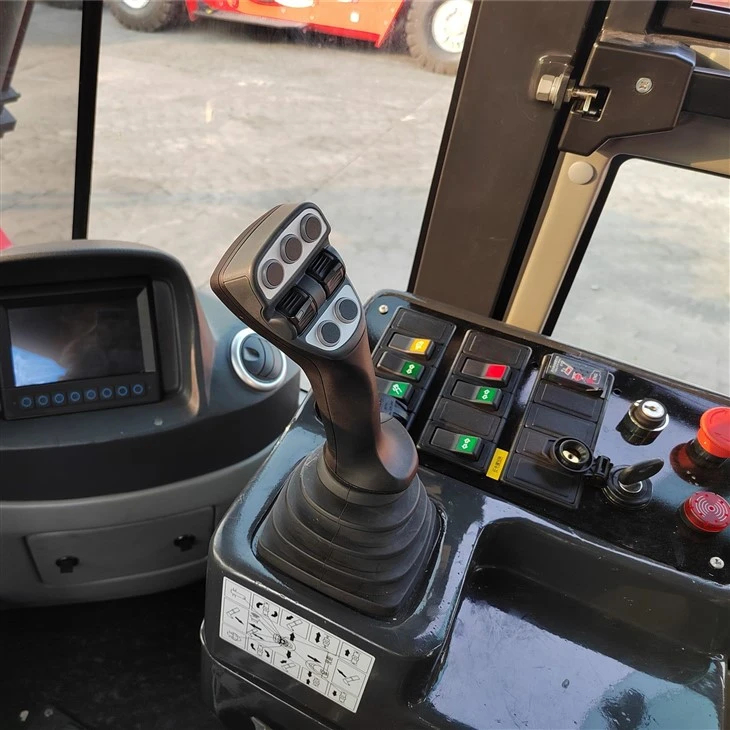

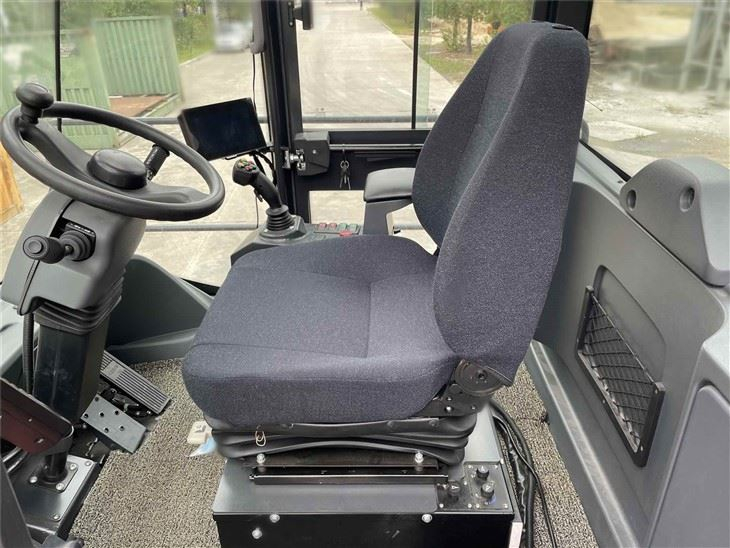

Comfortable And Easy Operation：CAN Bus communication technology,Equipped with large-color display for easy reading the real status of the truck,Equipped with multi-function joystick,All the control are at your fingertips ergonomics design.
Auto-gear Transmission：Anti-collision protection for spreader and boom,Boom vertical lifting and automatic return technology,Accurate weighing system,Automatic fault detection and real-time.
| Basic Parameter | HNRS4531 | HNRS4545S | HNRS1009 |
|---|---|---|---|
| Engine | VOLVO / CUMMINS / SCANIA | VOLVO / CUMMINS | CUMMINS |
| Transmission | DANA | DANA | DANA |
| Driver Axle | ATI/KESSLER | ATI/KESSLER | KESSLER |
| Spreader | SOCMA J450 | SOCMA J450 | ZDJ100 |
| Spreader Weight | 7.8t | 7.8t | 4T |

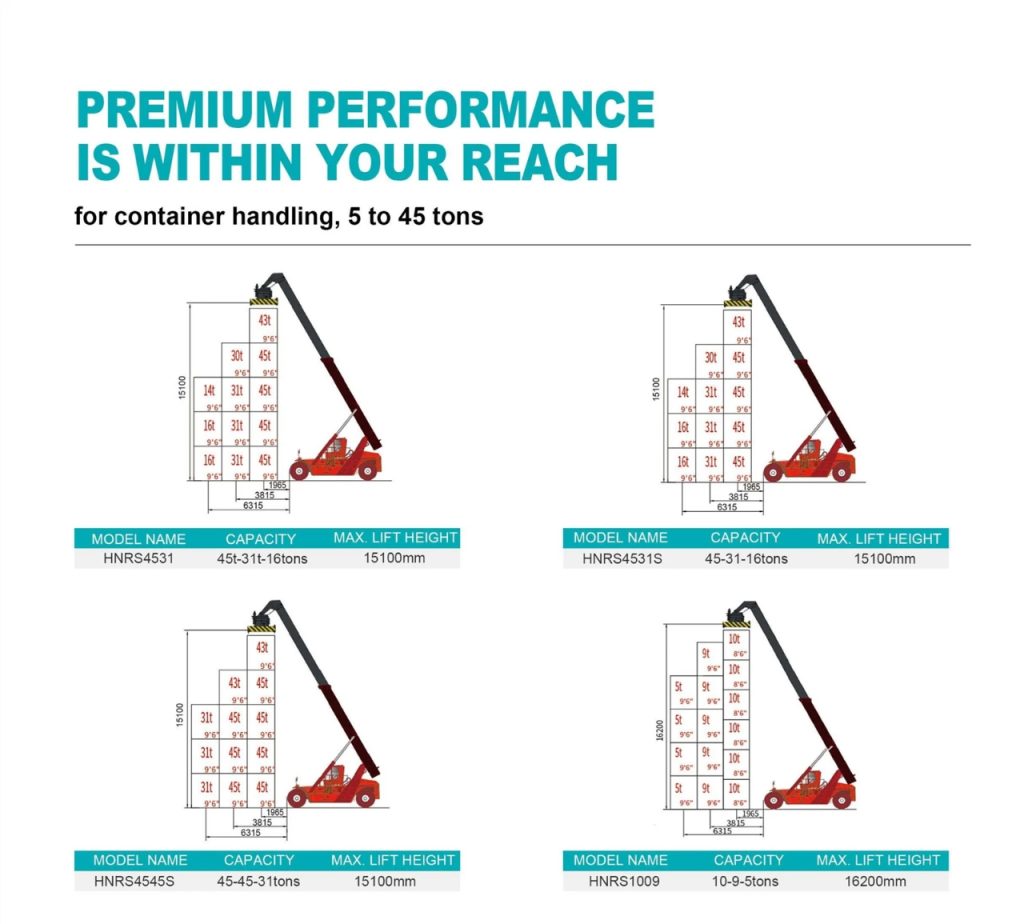

| Max Lift Capacity | 45t/31t/16t | 45t/45t/31t | 10T/9T/5T |
| Max Spreader | 15100mm | 15100mm | 16200mm |
| Boom Angle | 0~60deg | 0~56deg | 0~65deg |
| Max Lifting Speed | 420/250(mm/s) | 400/220(mm/s) | 450/400(mm/s) |
| Drive Speed | 25/21(km/h) | 24/20(km/h) | 28/25(km/h) |
| Gradeability | 39/32% | 33/21% | 33/27% |
| Hydraulic Pressure | 262bar | 262bar | 260bar |
| Overall Dead Weight | 72t | 79t | 39t |
| Stacking Length | 5 (9'6") | 5 (9'6") | 6 (9'6") |
| Max Length | 11300mm | 12685mm | 11031mm |
| Wheel Base | 6000mm | 7250mm~9750mm | 5000mm |
| Max Height | 4625mm | 4725mm | 4041mm |
| Max Width | 6053-12185mm | 6053-12185mm | 4049mm |
| Turning Radius Inner | 8000mm | 9700mm | 6753mm |
| Aisle Width With 20ft | 11797mm | 13282mm | 8072mm |
| Aisle Width With 40ft | 13965mm | 14261mm | 12684mm |
| Fuel Consumption | 18L~20L/h | 19L~21L/h | 12L~14L/h |
| Tire Type | 18-25X40P | 18-33X40PR | 14-24X28PR |
