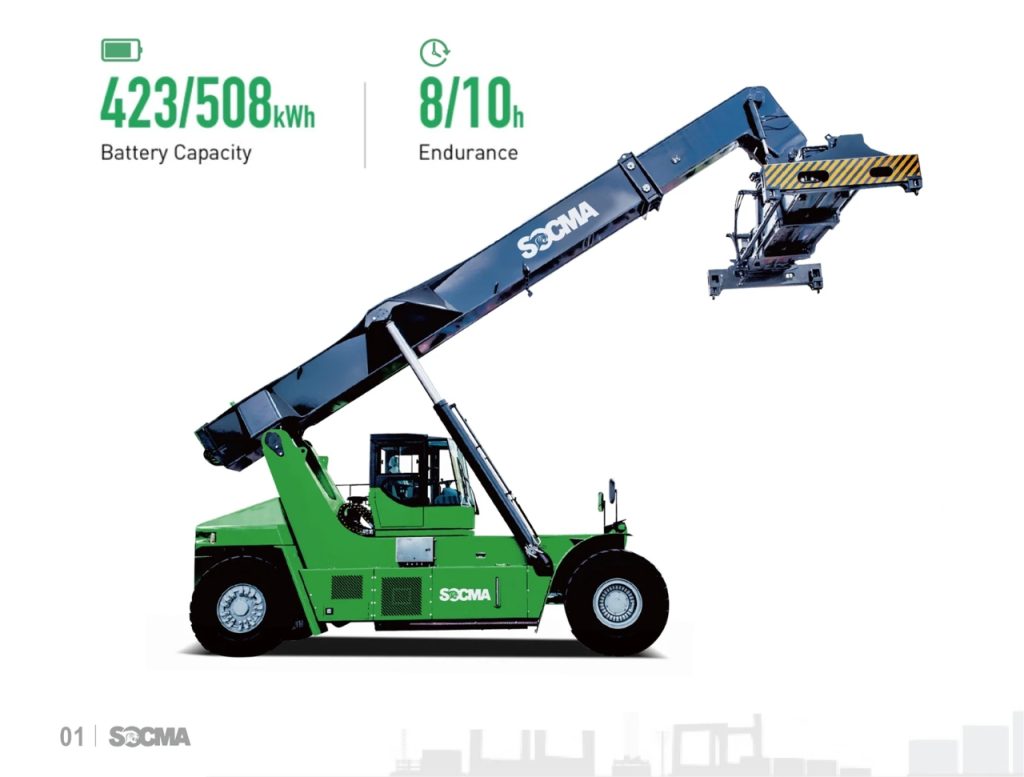

HNRS4531-5E 45 Ton Electric Reach Stacker For Loaded Containers
HNRS4531-5E 45 Ton Electric Reach Stacker For Loaded Containers
SOCMA specializes in the design and manufacture of high-performance port machinery. SOCMA products, known for their robust construction and exceptional lifting capacities, are perfectly suited for challenging industrial tasks. Available in both diesel and electric options, SOCMA Reach Stackers cater to a wide range of heavy-duty applications in ports, logistics centres, and construction sites, ensuring reliability and efficiency for our global clientele.
Product Information
FULLY-ELECTRIC POWER PACK：High Safty Standard LFP Cell,High Capacity Module,High Strength Frame,High Energy Density,High Ingress Protection 68
LONG ENOURANCE：8 or 10 Hours of Continuous Operation,Option of Battery Changing(Container Handler is available),Wreless Charging and Fast Charging (R&D),Heat Management System, Heating/Cooling/Temperature Balance,Comply with GB/T31467.3-2015
INTELLIGENCE PLATFORM：Remote Management(APPand PC),Operation Assistance System (CCTV),Detailed HMI System,Visualization Parameters,Automatic Fault Detection System
OPERATING AND COMFORT：CAN Bus Communication,Proportional inching Control,Ergonomics Design of Cabin,Wide View of Cabin,Seat Comfort Configuration
ISAFETY AND RELIABILITY：FEA of Main Structure,Dynamic Anti-overturning Control,Anti-collision Technology,Fireproof,Waterproof and Short-circuit Proof,Hydraulic Heat Dissipation and Pipe Explosion-proof
| Model | HNRS4531-5E |
| Battery Module | CATL/BYD |
| Self-weight | 72t |
| Spreader | SOCMA |
| Axles | FUWA/KESSLER+CO |
| Tyre | 18-25*40PR |
| Rated Load | 45t/31t/16t, At 1st Row/2nd Row/3rd Row |
| Max. Lifting Height | 15100 mm |
| Stacking Ability | 5*9.5ft, 6 Layers by 6E Series |
| Hoist Speed (Loaded/Unloaded) | 420/250 mm/s |
| Lowering Speed (Loaded/Unloaded) | 450/300 mm/s |
| Travel Speed (Loaded/Unloaded) | 25/21 km/h |
| Gradeability (Loaded/Unloaded) | 39/32% |
| Overall Size | 11300*6053~12185*4625 mm |
| Min. Turning Radius | 8000 mm |
